1974 Harley-Davidson Sportster: “Then Came Bronson” Motorcycle

By David Howe
Published on August 12, 2010
1 / 12

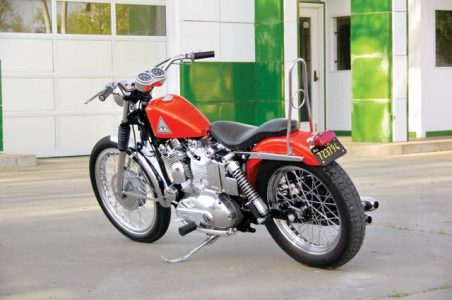

Don “Donson” Collins’ 1974 Harley-Davidson Sportster faithfully recreates the bike used on the show Then Came Bronson, right down to the groovy “All Seeing Eye” on the tank.
Don “Donson” Collins’ 1974 Harley-Davidson Sportster faithfully recreates the bike used on the show Then Came Bronson, right down to the groovy “All Seeing Eye” on the tank.
2 / 12
3 / 12
4 / 12
Don “Donson” Collins’ 1974 Harley-Davidson Sportster faithfully recreates the bike used on the show Then Came Bronson, right down to the groovy “All Seeing Eye” on the tank.
Don “Donson” Collins’ 1974 Harley-Davidson Sportster faithfully recreates the bike used on the show Then Came Bronson, right down to the groovy “All Seeing Eye” on the tank.
5 / 12

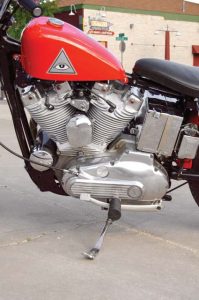

Tribute bike engine is 1,000cc Sportster unit.
Tribute bike engine is 1,000cc Sportster unit.
6 / 12

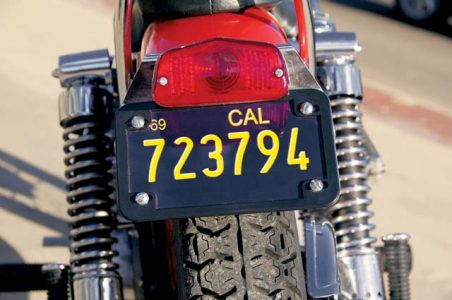

License plate has tag numbers used on show.
License plate has tag numbers used on show.
7 / 12

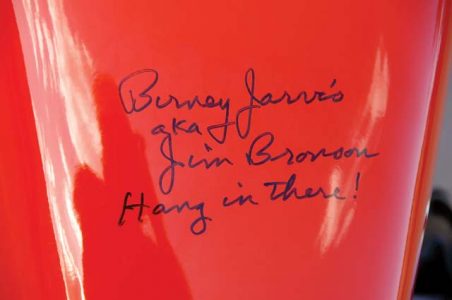

Tank signed by Birney Jarvis.
Tank signed by Birney Jarvis.
8 / 12
9 / 12
10 / 12
11 / 12

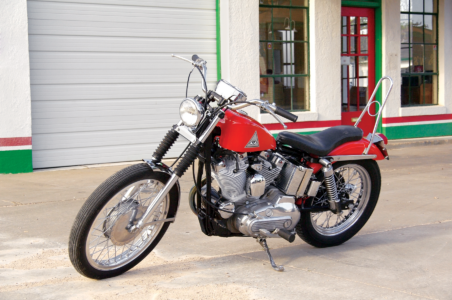

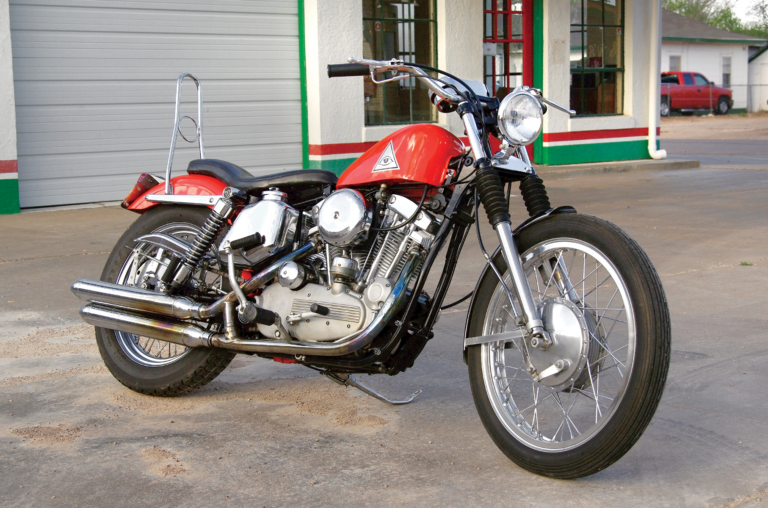

Don’s tribute bike is based on a 1974 Sportster, but there’s little to separate it technically or visually from the Sportsters used in the original 1969 show.
Don’s tribute bike is based on a 1974 Sportster, but there’s little to separate it technically or visually from the Sportsters used in the original 1969 show.
12 / 12

1969 Harley-Davidson XLH Sportster
The original Bronson Bikes were modified 1969 XLH Sportsters. They were not radical customs and used standard engine components, but had a number of visual changes including: 21-inch alloy front wheel with ribbed tire • “Peanut” gas tank from the XLCH model • Special handlebars • Bobbed and chromed front fender • Bobbed rear fender • Slim custom seat • Chrome chain guard, voltage regulator and oil tank • British aftermarket tail light • Earlier small air cleaner • Chrome Bates headlight • Schwinn bicycle sissy bar • Special Bronson Red paint • “All Seeing Eye” tank logos
Engine: 900cc OHV air-cooled 45-degree V-twin, 76.2mm x 96.8mm bore and stroke, 9:1 compression ratio, 50hp @ 6,300rpm
Top speed: 122mph (period test)
Carburetion: Single Model HD Tillotson
Transmission: 4-speed, right foot shift, chain final drive
Electrics: 12v, magneto and breaker points
Frame/wheelbase: Dual-downtube steel cradle/ 57in (1,448mm)
Suspension: Telescopic forks front, twin shock absorbers with adjustable preload rear
Brakes: 8in (203mm) SLS drum front, 8in (203mm) SLS drum rear
Tires: 3.5 x 19in front, 4 x 18in rear
Weight (wet): 452lbs (205kg)
Seat height: 30.5in (775mm)
Fuel capacity/MPG: 2.2gal (8.3ltr)/40-50mpg (est.)
Price then/now: $1,850 (est.)/$5,000-$11,000

If you’re of a certain age, you’ll never forget Then Came Bronson, a short-lived TV show chronicling the adventures of Jim Bronson, a disillusioned but likeable young newspaper reporter out on a voyage of personal discovery.

Propelling Bronson from one episode to the next was his Harley-Davidson Sportster, transporting him through a kaleidoscope of fascinating characters and situations that both challenged and strengthened his gentle spirit.

Taken at face value, the travails of a social dropout played by a largely unknown actor riding around on a not-especially-good custom sportster doing improbable things doesn’t seem like much of a storyline.

But American society was undergoing tumultuous change, fueled by angst of a raging war, race riots, political assassinations, hippies and corporate cultures sucking the life out of ourselves or our parents. Craziness was all around. The time was ripe for a hero.
